Nanovia Flex VX : Virucide flexible ISO 21702

Category: Tags: ,

Description

Properties

3D Printing

Extrusion T°210 – 230 °C
Plate T°20 – 40 °C
Nozzle> 0,4 mm
Printing Speed20 – 60 mm/s
Diametre1,75 ou 2,85 mm +/- 50µm
Linear weight2,90 g/m @ Ø 1,75 mm
7.69 g/m @ Ø 2,85 mm
ColourNoir

Mechanical Properties

Densité1,20 g/cm3 (ASTM D792)

Thermal Properties

Tg-32 °C
Max usage T°60 °C

Biological

% elimination 1H95.3% (ISO 21702)
% elimination 2H98.7% (ISO 21702)
% elimination 4H99.7% (ISO 21702)
% elimination 8H99.9% (ISO 21702)

Documentation

Download the technical chart Download the security chart

With Nanovia Flex VX create virucidal flexible pieces with choch absorbing properties. Specially made with additive fabrication in mind, this filaments is suited for the limitation of biological contaminantes spread, certified ISO 21702:2019.

Nanovia Flex VX virucidal properties allow for the elimination of 95,3% the H1N1 virus, after a contact time of only 1 hour, and close to 100% after 4 hours.

Usage :

With its powerfull and without any dangers to touch,

With its powerfull and without any dangers to touch, Nanovia Flex VX is suited for the creation of flexible daily use objects. :

  • Handles and flexible handle covers
  • Antibacterian orthopdic soles
  • Touch pads
  • Covering of computer equipment

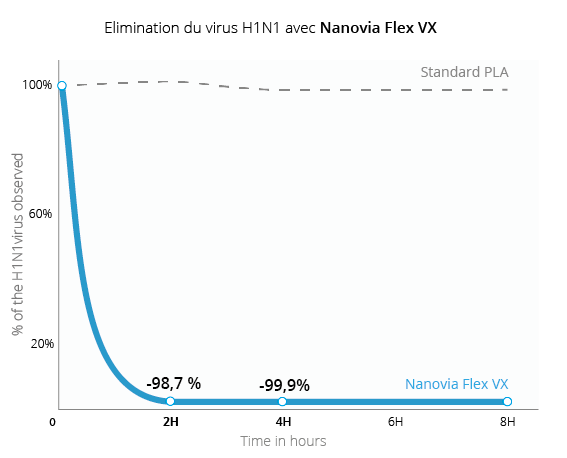

Virucide properties:

efficacité virucide nanovia flex vx virus H1N1

The virucide test has been conducted according to theISO 21702 norm by an independent laboratory in normalized conditions, on a FDM 3D printed test samples using H1H1 Influenza virus

Avantages:

  • Certified Virucide norm ISO 21702 on influenza H1N1 (the H1N1 is a shell virus similar to COVID19)
  • No risk on contact
  • Auto decontamination/ prevents the formation of a biofilm
  • Easy to print
  • Food safe
  • Long term efficiency

Other formats

The Nanovia VX product range is composed of 2 types of 3D filaments, developed to limit the spread of infectious viruses:

  • PLA VX : print daily use objects with ease
  • Flex VX: flexible filament, shock and distortion absorbing (soles.…)

These 2 formulas are also available in pellet form for plastic injection.

Application recommendations

Storage

  • We recommend stocking Nanovia Flex VX in a dry and dark location, if possible with a desiccant.
  • In order to guarantee good printing conditions dehydrate Nanovia Flex VX at 60°c for 4 hours or longer, when the spools has been exposed to moisture for an extended period.

Printing

Nanovia Flex VX filament can be used on most commercially available 3D printers.

  • The filament should be extruded in a range of 210 à 230 ° C.
  • A heated bed is required (between 20 et 40 ° C)

Post traitement

  • It is not possible to sans Nanovia Flex VX

Health and safety

Post treatment

  • Do not apply any paint or coating on pieces printed using Nanovia Flex VX, in order to conserve its virucide properties.

Use biocide products with precaution

Please refer to the safety sheet and the technical data sheet when using Nanovia Flex VX

ANSES N° : 20-07988

Packaging

Spools packed in individual boxes, sous-vide with desiccant. Product equipped with material traciblity and production series number.

Spool L1 L2 D1 D2 D3
500g 55 45 200 105 52
2kg 100 90 300 210 52

FAQ:

Is Nanovia VX certified efficiant avainst the Covid-19 Virus?

Up to today there is no existing ISO validated norm proving the action against the Covid-19 virus. However, the Covid-19 is structured (corona virus) in the same family as the H1N1 virus.

Is its protection longlasting ?

Yes, the active charge of Nanovia VX is present throughout all of the material, allowing the surface to maintain its virucidal properties. It is important to make sure that the surface does not get covered to ensure its efficiency.

Can printed parts be covered by another product (paints, varnish, etc…) ?

No, it’s imperative to keep the surface of the printed parts such as, they cannot be covered with paint or varnish. In order to be efficient the material need to be in direct contact with the pathogen.

Is it really efficiant?

The biological test has been performed within the ISO 21702 norm by a certified independent laboratory on a 3D FDM printed test sample. Nanovia VX virucidal properties conform to the European norms.

How do Nanovia VX virucidal properties work ?

The biocidal active, with a complex copper and silver base, has been specially formulated to be incorporated in the Nanovia VX range. Our patented formulation allows for the presence of the decontamination agent throughout the printed parts and its stability over time.

The active virucidal agent causes a degradation of the virus’ wall by catalysis.

To stay informed about the ongoing development and certification of Nanovia VX, follow our news or subscribe to our newsletter.

Additional information

Max temperature

55 °C
